| Light Weight: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. | Stablity: | No Stress Relief After Machining; No Warps And Is Dent Resistant. |
|---|---|---|---|
| TOOLING: | 4 To 5 Times Greater Tool Life. | FINISH: | Up To 5 Times More Machinable Than Rolled Aluminum. |
| WEIGHT: | Easier Handling Saves Energy And Time. | FLATNESS: | Eliminates Surface Machining. |
| WELDING: | Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity. | CORROSION RESISTANT: | A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion. |
| NON-GALLING: | Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear, | REPID HEAT: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit. |
| UNIT VOLUME: | Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound. | ||
| High Light: | magnesium based alloy,aluminum magnesium alloy |
||
Magnesium Alloy Plate Non Pullution magnesium Products Environment Friendly AZ31B-O AZ31B-H24

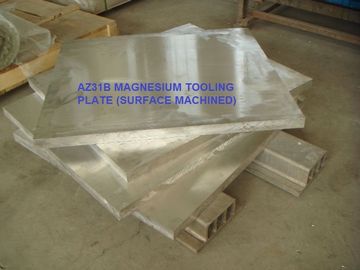

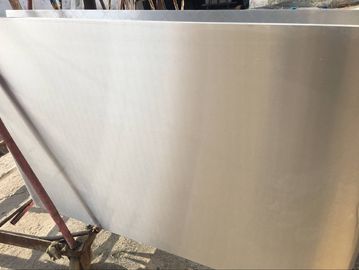

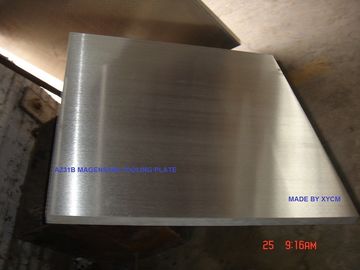

Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) produces the magnesium tooling plate with the surface machining and polishing, the available dimension range:
Thickness: 6mm – 300mm
Width: Max. 2000mm
Length: 4000mm
Tolerances: -0/+3mm for thickness, width and length
Magnesium Tooling Plate Flatness Tolerances
Max. deviation from flat as measured by a straight edge placed on plate surface.
| Specified Plate Gauge | Max. allowed deviation from flat | |||
| Over (mm) | Thru (mm) | In any 300mm | In any 1500mm | In any 2000mm |
| 6.3 | 25 | 0.125mm | 0.31mm | 0.42mm |
| 25 | 150 | 0.250mm | ||
| Specified Plate Gauge | Typical tooling plate deviation from flat | |||
| Over (mm) | Thru (mm) | In any 300mm | In any 1500mm | In any 2000mm |
| 6.3 | 25 | 0.077mm | 0.15mm | 0.19mm |
| 25 | 150 | 0.125mm | 0.21mm | 0.28mm |
Other sizes are available subject to enquiry, up to a maximum per plate weight of 2000kg.
Maximum gauge: 300mm; Maximum width 2000mm; Maximum length: 5000mm
STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE
| GAUGE TOLERANCES | WIDTH TOLERANCES | LENGTH TOLERANCES | ||||||
| Specified Gauge | Tolerance | Specified Width | Tolerance | Specified Width | Tolerance | |||
| Over | Thru | Over | Thru | Over | Thru | |||
| 6.3 | 19mm | +/-0.25mm | 0 | 250mm | +4.75mm | 0 | 250mm | +4.75mm |
| 19 | 32mm | +/-0.43mm | 250 | 1220mm | +9.50mm | 250 | 1220mm | +9.50mm |
| 32 | 50mm | +/-0.64mm | 1220 | 1825mm | +12.7mm | 1220 | 1825mm | +12.7mm |
| 50 | 75mm | +/-1.25mm | 1825 | 1950mm | +15.9mm | 1825 | 6000mm | +15.9mm |
| 75 | 83mm | +/-1.65mm | - | - | - | - | - | - |
| 83 | 90m | +/-2.00mm | - | - | - | - | - | - |
| 90 | 100mm | +/-2.80mm | - | - | - | - | - | - |
| 100 | 125mm | +/-3.20mm | - | - | - | - | - | - |
| 125 | 150mm | +/-3.40mm | - | - | - | - | - | - |
| 150 | 175mm | +/-3.705mm | - | - | - | - | - | - |
TOOLING PLATES STANDARD METRIC SIZES
| 6.35 x 1250 x 2500mm | 20 x 1500 x 4000mm | 50 x 1500 x 4000mm |
| 6.35 x 1250 x 4000mm | 25 x 1250 x 2500mm | 60 x 1250 x 2500mm |
| 10 x 1250 x 2500mm | 25 x 1250 x 4000mm | 60 x 1250 x 4000mm |
| 10 x 1250 x 4000mm | 25 x 1500 x 4000mm | 60 x 1500 x 4000mm |
| 12.7 x 1250 x 2500mm | 30 x 1250 x 2500mm | 75 x 1250 x 2500mm |
| 12.7 x 1250 x 4000mm | 30 x 1250 x 4000mm | 75 x 1250 x 4000mm |
| 12.7 x 1500 x 4000mm | 30 x 1500 x 4000mm | 75 x 1500 x 4000mm |
| 15 x 1250 x 2500mm | 40 x 1250 x 2500mm | 100 x 1250 x 2000mm |
| 15 x 1250 x 4000mm | 40 x 1250 x 4000mm | 125 x 1250 x 2000mm |
| 15 x 1500 x 4000mm | 40 x 1500 x 4000mm | 150 x 1250 x 1500mm |
| 20 x 1250 x 2500mm | 50 x 1250 x 2500mm | |
| 20 x 1250 x 4000mm | 50 x 1250 x 4000mm |
|
AZ31B-O AZ31B-H24 Magnesium Alloy Plate Non Pullution magnesium Products Environment Friendly
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
