Light Weight: | Density Is 1.78, Less Than Aluminium 33% | Good Strength: | Excellent Strength And Stiffness Per Unit Weight. |
---|---|---|---|
Material Alloys:: | AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 And ZE41. | Stability: | No Stress Relief After Machining; No Warps And Is Dent Resistant. |
Fast Heat Dissipation: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit. | Damping: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. |
High Light: | magnesium welding rod,magnesium anode rod |
XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) opened their plant in 1995 to serve the magnesium alloy industry like as magnesium master alloys, magnesium alloy ingot, magnesium alloy plate, sheet, slab, bar, rod, billet, tube, pipe, wire and profile. For more than 20 years, XYMCO has always remained focused on one important factor – the customer.
By listening to our customers, watching market changes and keeping up with technology, XYMCO is a state-of-art, qualified magnesium alloy materials manufacturing center. Our focus has always been and will always be to provide superior customer service, qualified magnesium alloy materials and just-on-time deliveries for making our customers - the number one ingredient in our successful recipe. It is comforting to know, in this fast paced 21st century, there is still a company who cares enough to listen and react to your requirements. Send us E-mail to sales.magalloy@qq.com with your enquiries! Or call us at + 86 29 8263 6374!
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm

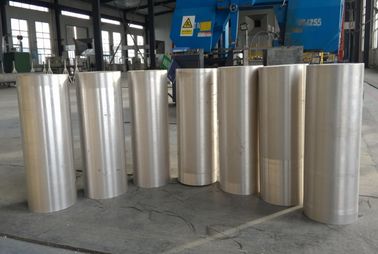

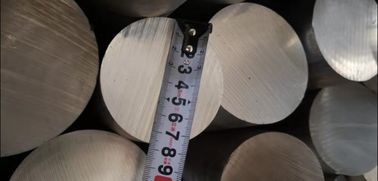

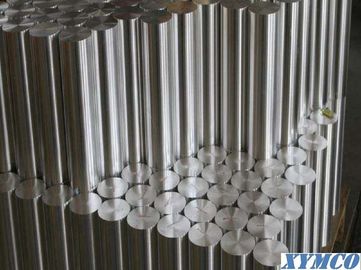

4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:
DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
Plate - Extra flat | AZ31B-O | -- | 4382 | |||
Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 |
