| Light Weight: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. | Stablity: | No Stress Relief After Machining; No Warps And Is Dent Resistant. |
|---|---|---|---|
| COSTS: | Machine Dry, Without Oil Or Chemicals. | TOOLING: | 4 To 5 Times Greater Tool Life. |
| FINISH: | Up To 5 Times More Machinable Than Rolled Aluminum. | NONMAGNETIC: | Good For Electrical And Computer Applications. |
| WEIGHT: | Easier Handling Saves Energy And Time. | FLATNESS: | Eliminates Surface Machining. |
| WELDING: | Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity. | ALKALI-RESISTANT: | Makes For Easy Cleaning. |
| CORROSION RESISTANT: | A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion. | STRENGTH: | Excellent Strength And Stiffness Per Unit Weight. |
| NON-GALLING: | Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear, | REPID HEAT: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit. |
| UNIT VOLUME: | Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound. | SALVAGE: | Scrap Retains A Consistently High Level Of Value. |
| High Light: | magnesium bar stock,magnesium flat bar |
||
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:
| DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
| AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
| Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
| Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
| Plate - Extra flat | AZ31B-O | -- | 4382 | |||
| Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
| AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
| Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
| Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
| AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
| As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
| Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
| As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
| ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
| As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
| Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
| As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
| Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 | |||||
| DAMPING | Absorbs vibration for longer life, while retaining dimensional stability. |
| TOOLING | 4 to 5 times greater tool life. |
| FINISH | Up to 5 times more machinable than rolled aluminum. |
| COSTS | Machine dry, without oil or chemicals. |
| WEIGHT | Easier handling saves energy and time. |
| FLATNESS | Eliminates surface machining. |
| STABILITY | No stress relief after machining; no warps and is dent resistant. |
| WELDING | Strong weldments up to 95% of parent metal, with minimal porosity. |
| ALKALI-RESISTANT | Makes for easy cleaning. |
| CORROSION RESISTANT | A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion. |
| STRENGTH | Excellent strength and stiffness per unit weight. |
| NON-GALLING | Sound and rugged surface, offering a low coefficient of friction and minimum wear, |
|
REPID HEAT |
Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit. |
| NONMAGNETIC | Good for electrical and computer applications. |
|
UNIT VOLUME |
Greater amount of finished magnesium material obtained, pound for pound. |
| SALVAGE | Scrap retains a consistently high level of value. |
Xi’an Yuechen Metal Products Co., Ltd. - XYMCO has manufactured magnesium alloy rod/bar from 1995. We have production capacity with 1250 tonne press, 2500 tonne press and 3600 tonne press in house, our subcontract company has the 8000 tonne press and 10000 tonne press so that we can supply our customers big section extrusions.
Our extrusion capacity is as follows:
Round tube: Max. OD600mmx thickness 125mm
Square tube: 430 x 430mm
Flat bar: 920 x 160mm
U-Shape: 800 x 300mm
Rectangular: 700 x 200mm
Available extrusion alloys:
AZ31B, AZ61A, AZ80A, M1A, ZK60A, Pure Magnesium and Custom alloys
Heat treatment is available as per customer’s application.
Specification:
ASTM B107/B107M-13
GB standard

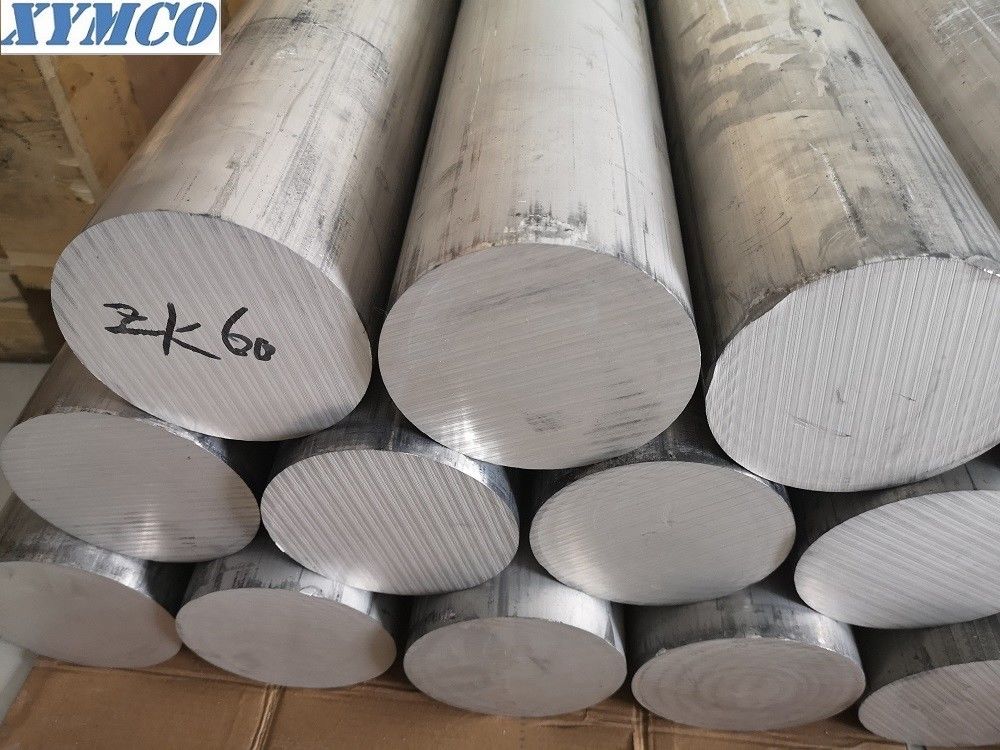

Existing extrusion tooling for Round Bar (for AZ31, AZ61, AZ80, ZK60, WE43):
| Diameter(mm) |
| Ø 8 |
| Ø 10 |
| Ø 12 |
| Ø 13 |
| Ø 14 |
| Ø 15 |
| Ø 18 |
| Ø 20 |
| Ø 25 |
| Ø 28 |
| Ø 30 |
| Ø 35 |
| Ø 40 |
| Ø 45 |
| Ø 50 |
| Ø 60 |
| Ø 70 |
| Ø 80 |
| Ø 100 |
| Ø 120 |
| Ø 150 |
| Ø 170 |
| Ø 210 |
Applications of our extruded products:
The special characteristics of magnesium such as its light weight and damping capacity make it a material that is readily used in several different applications.
Automotive
| Engine blocks | Steering column parts | Seat components |
| Bed plates | Brake and pedal brackets | Roof panels |
| Transmission houses | Airbag retainers | Fuel tank covers |
| Transfer cases | Radio frames + heatsinks | Engine hoods |
| Head covers | Radio covers | Rear deck lids |
| Oil pans | Mirror brackets | Full magnesium doors |
| Knee bolsters | Door handles | Wheels |
| Steering wheels | Front ends | Radiator supports |
Sport and Leisure
| Luggage frames | Suit cases | Tennis rackets |
| Bicycle frames | Camping equipment | Snowshoes |
| Mountain bike frames | Eyewear frames | Bull floats |
Common applications
| Cellular phones | Multi-media housings | Camcorders |
| Antenna housing | Camera Housings | Electric shavers |
| Loudspeaker frames | Projector frames | Printers |
| Laptop Housings | Batteries | Headphones |
| Train Seats | Aviation components | Turbine engines |
| Truss constructions | Cargo floors | Powertools |
| Chain saws | Concrete trowels | Wall saws |
| Ladders | Scaffoldings | Shelves |
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
