Light Weight: | Density Is 1.78, Less Than Steel Alloy 80% | Good Strength: | Excellent Strength And Stiffness Per Unit Weight |
---|---|---|---|
Damping: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability | Stability: | Good For Electrical And Computer Applications |
Non-magnetic: | Good For Electrical And Computer Applications | Material Grade:: | AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 And ZE41. |
High Light: | magnesium metal ribbon,magnesium ribbon anode |

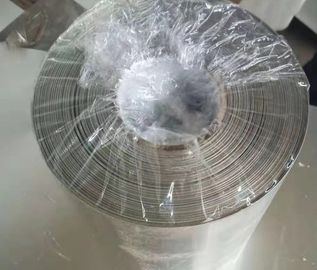

Magnesium strip AZ31 AZ31B Magnesium coil / Foil / Sheet Customized Magnesium Ribbon Cathodic Protection
Wrought Magnesium Alloy Specifications
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XYCM can be complied with are as following Table:
DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
Plate - Extra flat | AZ31B-O | -- | 4382 | |||
Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 |
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
