|Light Weight:||Absorbs Vibration For Longer Life, While Retaining Dimensional Stability.||Stablity:||No Stress Relief After Machining; No Warps And Is Dent Resistant.|
|COSTS:||Machine Dry, Without Oil Or Chemicals.||TOOLING:||4 To 5 Times Greater Tool Life.|
|FINISH:||Up To 5 Times More Machinable Than Rolled Aluminum.||NONMAGNETIC:||Good For Electrical And Computer Applications.|
|WEIGHT:||Easier Handling Saves Energy And Time.||FLATNESS:||Eliminates Surface Machining.|
|WELDING:||Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity.||ALKALI-RESISTANT:||Makes For Easy Cleaning.|
|CORROSION RESISTANT:||A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion.||STRENGTH:||Excellent Strength And Stiffness Per Unit Weight.|
|NON-GALLING:||Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear,||REPID HEAT:||Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit.|
|UNIT VOLUME:||Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound.||SALVAGE:||Scrap Retains A Consistently High Level Of Value.|
magnesium metal ribbon,
magnesium ribbon anode

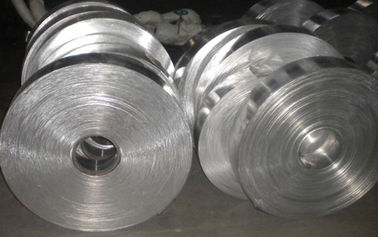

Magnesium Strip AZ31 / AZ31B Magnesium Coil / AZ31B-F Magnesium Ribbon coil
Wrought Magnesium Alloy Specifications
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XYCM can be complied with are as following Table:
Designation & Temper
|AZ31B||Sheet - soft||AZ31B-O||B90||QQ-M-44B||4375|
|Sheet - half hard||AZ31B-H24||B90||QQ-M-44B||4377|
|Plate - soft||AZ31B-O||B90||QQ-M-44B||4375|
|Plate - half hard||AZ31B-H24||B90||QQ-M-44B||4377|
|Plate- three quarters hard||AZ31B-H26||B90||QQ-M-44B||4376|
|Plate - Extra flat||AZ31B-O||--||4382|
|Extruded bars & sections||AZ31B-F||B107||QQ-M-31B||-|
|AZ61A||Extruded bas & sections & forging stock||AZ61A-F||B107||QQ-M-31B||4350|
Extruded bars &
Extruded bars &
|Magnesium Alloy Castings||AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41|
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
AZ31B bare or precoating magnesium photoengraving plate for engraving
Magnesium plate has good carving processing performance.
Because of its outstanding characteristics of magnesium plate engraving of low density, high specific stiffness, good damping property, environment friendly and no pollution, Recyclable good performance, known as the twenty-first Century green metal structure material. The magnesium plate engraving and mechanical processing of parts, in national defense, aerospace, electronic communication, rail transportation, medical equipment, printing plate, magnesium board carving mold and other fields, and has wide application prospect.
Full range of product types, Ensure production capacity:
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
|DAMPING||Absorbs vibration for longer life, while retaining dimensional stability.|
|TOOLING||4 to 5 times greater tool life.|
|FINISH||Up to 5 times more machinable than rolled aluminum.|
|COSTS||Machine dry, without oil or chemicals.|
|WEIGHT||Easier handling saves energy and time.|
|FLATNESS||Eliminates surface machining.|
|STABILITY||No stress relief after machining; no warps and is dent resistant.|
|WELDING||Strong weldments up to 95% of parent metal, with minimal porosity.|
|ALKALI-RESISTANT||Makes for easy cleaning.|
|CORROSION RESISTANT||A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion.|
|STRENGTH||Excellent strength and stiffness per unit weight.|
|NON-GALLING||Sound and rugged surface, offering a low coefficient of friction and minimum wear,|
|Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit.|
|NONMAGNETIC||Good for electrical and computer applications.|
|Greater amount of finished magnesium material obtained, pound for pound.|
|SALVAGE||Scrap retains a consistently high level of value.|
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
