Light Weight: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. | Stablity: | No Stress Relief After Machining; No Warps And Is Dent Resistant. |
---|---|---|---|
COSTS: | Machine Dry, Without Oil Or Chemicals. | TOOLING: | 4 To 5 Times Greater Tool Life. |
FINISH: | Up To 5 Times More Machinable Than Rolled Aluminum. | NONMAGNETIC: | Good For Electrical And Computer Applications. |
WEIGHT: | Easier Handling Saves Energy And Time. | FLATNESS: | Eliminates Surface Machining. |
WELDING: | Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity. | ALKALI-RESISTANT: | Makes For Easy Cleaning. |
STRENGTH: | Excellent Strength And Stiffness Per Unit Weight. | NON-GALLING: | Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear, |
High Light: | magnesium sheet metal,magnesium sheet stock |
Magnesium alloys are the lightest metal structure material for engineering applications. In the past years, engineers have taken a great interest in magnesium alloys in the automotive, aerospace, weapons, electronic and other fields, because of their low density, high specific strength and stiffness, good damping characteristics, as well as an excellent durability. Especially in the field of automobile industry, magnesium alloys have replaced the steel, cast iron and even aluminum alloys (Magnesium is the lightest of all structural metals, aluminum being 1.5 times heavier and steel being up to four times heavier), because they can reduce the weight of vehicles, so that significantly contributes to fuel economy and reducing CO2 emissions.
AZ31 Magnesium alloy is the most ductile and the most popular amongst AZ shaped alloys (Mg-Al-Zn group). Soft as it is, this alloy offers good combination of strength and ductility for structural application after deformation with severe reductions.
Diverse uses including aircraft fuselage, concrete tools, cell phone, camera, notebook computer cases and textile machinery.
The AZ31 alloy shaped magnesium tooling plate has the many benefits and special characteristics which gives the AZ31 many advantages like:
Absorbs vibration for much more lifetime, while keeping dimensional stability, 4 to 5 times greater tool life.
Up to 5 times more machinable than rolled aluminum, machine dry, without oil or chemicals, easier handling saves time and energy, eliminates surface machining, with no stress relief after machining process.
No warps and is dent resistant, strong weldments – up to 95% of parent metal, with minimum porosity, made for easy cleaning, with wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting.
Due to its good specifications, AZ31 magnesium alloy can be used in all kinds of fields.
Magnesium alloy thick plate are used to make satellites ,lunar landing aircraft bases, exterior panel of missile and rocket and the empennage of missile and plane.
Magnesium alloy middle board are used to make the auxiliary tank, side board and other structure of battle plane.
Cast sheet of magnesium alloy:
The magnesium alloys are used on the train for vibration attenuation, seat and couchette framework lining board and goods shelf.
The wide width usually requests between 1200-2000mm, and thickness between 1 and 1.5mm on cars’ front and rear panels, door panels. The shell of 3C product, computer, mobile hard disk, CD, camera, acoustics, cell phone.
Magnesium etching has replaced copper plate in printing and printing plate industry, and average thickness of the plate is 5mm.
Magnesium has been continuously used in electric tool and sport equipment.
Magnesium sheet and plate AZ31 alloy has applications in medium strength service at temperatures below 150C.
Mechanical Properties
Elongation at break ( % ) – 15
Hardness – Brinell – 73
Modulus of elasticity ( GPa ) – 45
Tensile strength ( MPa ) – 290
Physical Properties
Density ( g cm-3 ) – 1.8
Melting point ( C ) – 605-630

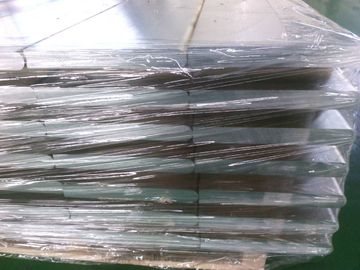

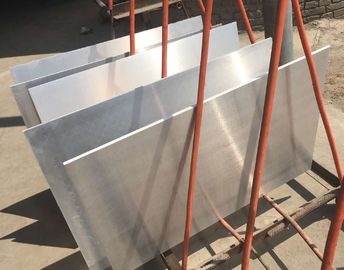

AZ31B-H24 Magnesium CNC engraving plate Magnesium Tooling Plate
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) produces the magnesium tooling plate with the surface machining and polishing, the available dimension range:
Thickness: 6mm – 300mm
Width: Max. 2000mm
Length: 4000mm
Tolerances: -0/+3mm for thickness, width and length
Magnesium Tooling Plate Flatness Tolerances
Max. deviation from flat as measured by a straight edge placed on plate surface.
Specified Plate Gauge | Max. allowed deviation from flat | |||
Over (mm) | Thru (mm) | In any 300mm | In any 1500mm | In any 2000mm |
6.3 | 25 | 0.125mm | 0.31mm | 0.42mm |
25 | 150 | 0.250mm | ||
Specified Plate Gauge | Typical tooling plate deviation from flat | |||
Over (mm) | Thru (mm) | In any 300mm | In any 1500mm | In any 2000mm |
6.3 | 25 | 0.077mm | 0.15mm | 0.19mm |
25 | 150 | 0.125mm | 0.21mm | 0.28mm |
Other sizes are available subject to enquiry, up to a maximum per plate weight of 2000kg.
Maximum gauge: 300mm; Maximum width 2000mm; Maximum length: 5000mm
STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE
GAUGE TOLERANCES | WIDTH TOLERANCES | LENGTH TOLERANCES | ||||||
Specified Gauge | Tolerance | Specified Width | Tolerance | Specified Width | Tolerance | |||
Over | Thru | Over | Thru | Over | Thru | |||
6.3 | 19mm | +/-0.25mm | 0 | 250mm | +4.75mm | 0 | 250mm | +4.75mm |
19 | 32mm | +/-0.43mm | 250 | 1220mm | +9.50mm | 250 | 1220mm | +9.50mm |
32 | 50mm | +/-0.64mm | 1220 | 1825mm | +12.7mm | 1220 | 1825mm | +12.7mm |
50 | 75mm | +/-1.25mm | 1825 | 1950mm | +15.9mm | 1825 | 6000mm | +15.9mm |
75 | 83mm | +/-1.65mm | - | - | - | - | - | - |
83 | 90m | +/-2.00mm | - | - | - | - | - | - |
90 | 100mm | +/-2.80mm | - | - | - | - | - | - |
100 | 125mm | +/-3.20mm | - | - | - | - | - | - |
125 | 150mm | +/-3.40mm | - | - | - | - | - | - |
150 | 175mm | +/-3.705mm | - | - | - | - | - | - |
TOOLING PLATES STANDARD METRIC SIZES
6.35 x 1250 x 2500mm | 20 x 1500 x 4000mm | 50 x 1500 x 4000mm |
6.35 x 1250 x 4000mm | 25 x 1250 x 2500mm | 60 x 1250 x 2500mm |
10 x 1250 x 2500mm | 25 x 1250 x 4000mm | 60 x 1250 x 4000mm |
10 x 1250 x 4000mm | 25 x 1500 x 4000mm | 60 x 1500 x 4000mm |
12.7 x 1250 x 2500mm | 30 x 1250 x 2500mm | 75 x 1250 x 2500mm |
12.7 x 1250 x 4000mm | 30 x 1250 x 4000mm | 75 x 1250 x 4000mm |
12.7 x 1500 x 4000mm | 30 x 1500 x 4000mm | 75 x 1500 x 4000mm |
15 x 1250 x 2500mm | 40 x 1250 x 2500mm | 100 x 1250 x 2000mm |
15 x 1250 x 4000mm | 40 x 1250 x 4000mm | 125 x 1250 x 2000mm |
15 x 1500 x 4000mm | 40 x 1500 x 4000mm | 150 x 1250 x 1500mm |
20 x 1250 x 2500mm | 50 x 1250 x 2500mm | |
20 x 1250 x 4000mm | 50 x 1250 x 4000mm |
APPLICATION
Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.
MAGNESIUM TOOLING PLATE is specially produced to provide a flat plate surface with moderate strength and ductility. The production process results in plate with exceptional dimensional stability in machining and remains stable over time. There is sufficient ductility for limited room temperature forming combined with weldability to allow the manufacture of a multitude of complex parts. Wrought magnesium tooling plate (Alloy AZ31B) has the following benefits and characteristics:
DAMPING | Absorbs vibration for longer life, while retaining dimensional stability. |
TOOLING | 4 to 5 times greater tool life. |
FINISH | Up to 5 times more machinable than rolled aluminum. |
COSTS | Machine dry, without oil or chemicals. |
WEIGHT | Easier handling saves energy and time. |
FLATNESS | Eliminates surface machining. |
STABILITY | No stress relief after machining; no warps and is dent resistant. |
WELDING | Strong weldments up to 95% of parent metal, with minimal porosity. |
ALKALI-RESISTANT | Makes for easy cleaning. |
CORROSION RESISTANT | A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion. |
STRENGTH | Excellent strength and stiffness per unit weight. |
NON-GALLING | Sound and rugged surface, offering a low coefficient of friction and minimum wear, |
REPID HEAT DISSIPATION |
Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit. |
NONMAGNETIC | Good for electrical and computer applications. |
UNIT VOLUME YIELD |
Greater amount of finished magnesium material obtained, pound for pound. |
SALVAGE | Scrap retains a consistently high level of value. |
XI’AN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) is one of the leading manufacturer of magnesium alloy products located in Xincheng Hi-Tech Industry Estate, Xi’an, Shaanxi, China, who is specialized in the development, manufacture and supply of magnesium alloy products worldwide included magnesium tooling plate, magnesium alloy plate, magnesium alloy sheet, magnesium alloy slab, magnesium alloy bar, magnesium alloy billet, magnesium alloy rod, magnesium alloy tube, magnesium alloy pipe, magnesium alloy profile, magnesium welding wire, magnesium alloy extrusion, magnesium alloy stamping, magnesium alloy casting, magnesium alloy forging and semi - fabricated component according to customer’s design.
We comply with the specifications:
GB5153-03, GB5154-04, AMS4377G, ASTM B90/B90M-15, MIL-DTL 32333, MIL-T-38749, QQ-M-44B, ASTM B107/B107M-13 and ASTM B91-97
Material grades: AZ31B, AZ61A, AZ80A, AZ91D, AZ41M, ZK60, AM50, AM60, ZM21, MIA, ME20M, EQ21, WE43, WE54, ZE41, etc.
Our main products and capabilities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 2000mm; Max. Length: 6000mm
2. Magnesium alloy cast slab: Max. Size: 400 x 1000 x 3000mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast billet: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium alloy extruded wire: Dia.1.0mm – 8.0mm in spool.
6. Magnesium alloy extruded rod: Min. Dia. 8mm; Max. Diameter: 450mm; Max. Length: 3000mm
7. Magnesium extrusions:
Round tube: Max. OD600mmx thickness 125mm
Square tube: 430 x 430mm
Flat bar: 920 x 160mm
U-Shape: 800 x 300mm
Rectangular: 700 x 200mm
8. Magnesium-Lithium Alloy rod, sheet, plate and tube.
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
