| Name: | Strong Weldments Up To 95% Of Parent Metal Magnesium Alloy Rod | Light Weight: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. |
|---|---|---|---|
| Stablity: | No Stress Relief After Machining; No Warps And Is Dent Resistant. | COSTS: | Machine Dry, Without Oil Or Chemicals. |
| TOOLING: | 4 To 5 Times Greater Tool Life. | FINISH: | Up To 5 Times More Machinable Than Rolled Aluminum. |
| NONMAGNETIC: | Good For Electrical And Computer Applications. | WEIGHT: | Easier Handling Saves Energy And Time. |
| FLATNESS: | Eliminates Surface Machining. | ALKALI-RESISTANT: | Makes For Easy Cleaning. |
| CORROSION RESISTANT: | A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion. | STRENGTH: | Excellent Strength And Stiffness Per Unit Weight. |
| NON-GALLING: | Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear, | REPID HEAT: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit. |
| UNIT VOLUME: | Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound. | SALVAGE: | Scrap Retains A Consistently High Level Of Value. |
| High Light: | Az80A Magnesium Alloy Rod,Az31b Magnesium Alloy Rod,Az80A magnesium filler rod |
||

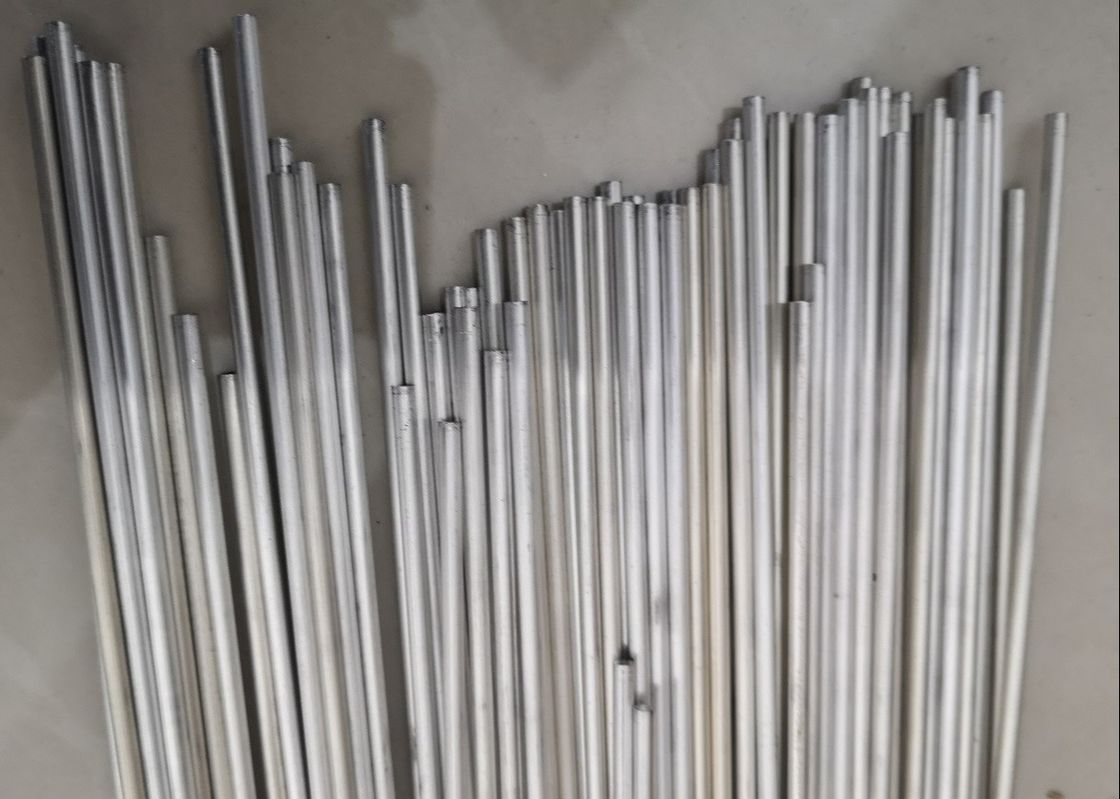

Strong weldments up to 95% of parent metal Magnesium Alloy Rod
Xi’an Yuechen Metal Products Co., Ltd. - XYMCO has manufactured magnesium alloy rod/bar from 1995. We have production capacity with 1250 tonne press, 2500 tonne press and 3600 tonne press in house, our subcontract company has the 8000 tonne press and 10000 tonne press so that we can supply our customers big section extrusions.
Our extrusion capabilities as follows:
Tube: The maximum thickness of 125mm OD600mmx
Square tube: 430 x 430mm
Flat: 920 x 160mm
U-shape: 800 x 300mm
Rectangular: 700 x 200mm
Extruded alloy can be used:
AZ31B, AZ61A, AZ80A, M1A, ZK60A, pure magnesium and alloys customization
Heat treatment can be carried out according to the customer's application.
Specification:
ASTM B107/B107M-13
GB standard
Existing extrusion mould of rod/bar:
Dia. 12mm, Dia. 15mm, Dia. 20mm, Dia. 30mm, Dia. 40mm, Dia. 50mm, Dia. 60mm, Dia. 70mm, Dia. 80mm, Dia. 90mm, Dia. 100mm, Dia. 140mm, Dia. 165mm, Dia. 170mm, Dia. 210mm
Our extrusion products Application:
Special characteristics of magnesium (e.g., light-weight and strong damping capacity) to make it easy to use in a variety of different applications.
Automotive
| Engine blocks | Steering column parts | Seat components |
| Bed plates | Brake and pedal brackets | Roof panels |
| Transmission houses | Airbag retainers | Fuel tank covers |
| Transfer cases | Radio frames + heatsinks | Engine hoods |
| Head covers | Radio covers | Rear deck lids |
| Oil pans | Mirror brackets | Full magnesium doors |
| Knee bolsters | Door handles | Wheels |
| Steering wheels | Front ends | Radiator supports |
Sport and Leisure
| Luggage frames | Suit cases | Tennis rackets |
| Bicycle frames | Camping equipment | Snowshoes |
| Mountain bike frames | Eyewear frames | Bull floats |
Common applications
| Cellular phones | Multi-media housings | Camcorders |
| Antenna housing | Camera Housings | Electric shavers |
| Loudspeaker frames | Projector frames | Printers |
| Laptop Housings | Batteries | Headphones |
| Train Seats | Aviation components | Turbine engines |
| Truss constructions | Cargo floors | Powertools |
| Chain saws | Concrete trowels | Wall saws |
| Ladders | Scaffoldings | Shelves |
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
