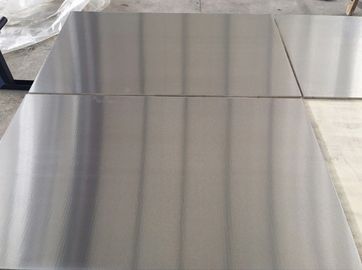

Mg9LiAl Mg9LiZn Mg9Li3 Li Mg Alloy Plate Sheet Nuclear Industry Use

Mg9LiAl Mg9LiZn Mg9Li3 Li Mg Alloy Plate Sheet Nuclear Industry Use

Ultra light Magnesium Lithium (MgLi) alloy Materials

MgLi alloy is the most light weight metal structure materials, density is generally 1.35-1.65g/cm3, has a high specific strength and specific stiffness and excellent damping performance and resistance to high-energy particle penetration. We also believed that the MgLi alloys will be widely used for aerospace, aviation, weapon, defense, nuclear industry and other potential industry sectors.

After years of researching and developing hard works, XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) is becoming one of a leading manufacturer and supplier of Magnesium Lithium (MgLi) alloy and Aluminium Lithium Magnesium (AlLiMg) alloys with the material grades for Mg14LiAl, Mg9LiAl, Mg9LiZn, Mg9Li3Al3Zn, Mg8LiAl, Mg8LiAlY and Mg8Li3AlY.

XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can mass produce LZ91,LA91, LA141, MA18 and MA21 magnesium lithium alloys in the form of rectangular or round shape ingot by vacuum melting techniques, and mass produce MgLi wrought alloys and its products of magnesium lithium alloy slab, magnesium lithium alloy bock, magnesium lithium alloy plate, magnesium lithium alloy sheet, magnesium lithium alloy foil, magnesium lithium alloy strip, magnesium lithium alloy coil, magnesium lithium alloy billet, magnesium lithium alloy rod, magnesium lithium alloy bar, magnesium lithium alloy tube, magnesium lithium alloy pipe, magnesium lithium alloy wire, magnesium lithium alloy profile by casting, forging, extrusion and hot rolling process. XYMCO also produces the customized sizes (non standard sizes) magnesium lithium alloy materials and its products according to customers’ requirements.

Applications of ultra light Magnesium Lithium (MgLi) alloy

Aerospace: Dashboard, levers, skin, seat frames, aircraft down side, fuel tank, and anti-cosmic dust shield wall, gyro mount plate, etc;

Military field: Missile fin and shell, rocket head case, the conversion device holder, aiming devices, stretchers, cartridges, etc;

Transportation: Wheels, steering wheel locking device covers, small toolbox door, pedal bracket, door frames, tail plate, motor cover, front cover, air compressor cover, pumping tubing, cars, etc;

3C products: Laptop case, cell phone case, camera case, PDA / GPS shell, high-end audio vibration film / tone pots, ultra-precise frequency electronic lithium-magnesium alloy plate, conduit, etc.

Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.


APPLICATIONS
Sheet and plate in AZ31B find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.

AZ31B is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.

Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.

SPECIFICATIONS
ASTM B90/B90M-07
AMS 4375
AMS 4376
AMS 4377

CHEMICAL COMPOSITION
Al: 2.5-3.5%
Zn: 0.7-1.3%
Mn: 0.20 – 1.0%
Mg: Balance

PHYSICAL PROPERTIES
Density: 1.78
Coefficient of thermal expansion: 26.8 x 10^-6K^-1
Specific heat: 1040 Jkg^-1k^-1
Thermal conductivity: 76.9Wm^-1k^-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 10⁹Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C

HEAT TREATMENT
No thermal treatment is available for increasing the strength of this alloy after fabrication.


MECHANICAL PROPERTIES

The sheet and plate shall conform to the tensile requirements in above Table unless other agreement is made between seller and purchaser. Mechanical Properties for sizes and tempers not shown in above Table shall be as agreed upon by seller and purchaser.

OTHER PROPERTIES
Typical Hadness
O temper: 67 Rockwell E
H24 temper: 83 Rockwell E

WELDABILITY
Excellent weldability with gas shielded arc using AZ61A (preferred) or AZ92A filler rod; post weld stress relief is required to prevent stress corrosion cracking. Resistance welding is excellent.

MACHINING
AZ31B, like all magnesium alloy sheet and plate, machines faster than any other metal. Providing the geometry of the part allows, the limiting factor is the power and speed of the machine rather than the quality of the tool material. The power required per cubic centimeter of metal removed varies from 9 to 14 watts per minute depending on machining operation.

DENT RESISTANCE
Weight for weight, AZ31B-H24 has proven to be superior to competitive materials in its resistance to denting at moderate energy levels.
Dent Resistance of 1mm Gauge Sheet (Dent depth in mm from 25mm spherical redius indentor on 350mm span)



SURFACE TREATMENT
All the normal chromating, anodizing, plating, and finishing treatment are readily applicable. AZ31B also responds well to plasma electrolytic oxidation finishing.

CORROSION RESISTANCE
Continuous exposure for 2.5 years.
Marine Atmosphere
AZ31B-H24 0.008mg.cm^-2d^-1
Mild steel 0.323mg.cm^-2d^-1

Industrial Atmosphere
AZ31B-H24 0.013mg.cm^-2d^-1
Mild steel 0.055mg.cm^-2d^-1

Rural Atmosphere
AZ31B-H24 0.006mg.cm^-2d^-1
Mild steel 0.032mg.cm^-2d^-1
