| Name: | Magnesium Plate | Light Weight: | Density Is One-third The Weight Of Aluminium, One-fourth Of Steel Making For An Easier Installation Of The End Product |
|---|---|---|---|
| Good Strength: | Excellent Strength And Stiffness Per Unit Weight. | Lower Costs:: | Magnesium Alloys Materials (per Unit) Price Is Amost Equal To Aluminium |
| Longer Tooling Life: | Magnesium Has Longer Tool Life Than Aluminium (for Die Casting And Extursion) | Purity: | 99.99% |
| High Light: | AZ61A Magnesium Profile,High Purity Magnesium Profile Plate,Magnesium Plate For Sports |
||

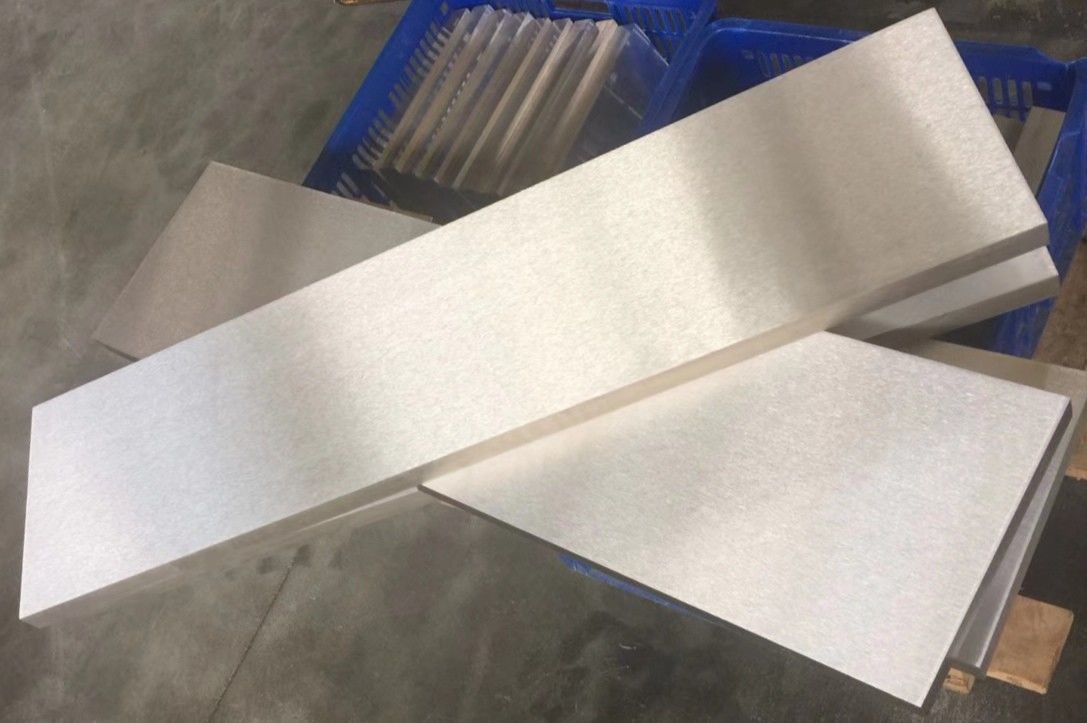

AZ31B AZ61A Magnesium Profile Plate / Sheet High Purity 99.99%
Magnesium Profile Plate Application
Medical use
Treat magnesium deficiency and cramps.
Sports use
Inject a few hours before intense exercise or after intense exercise to compensate for the loss of magnesium.
Gymnasts often apply magnesium powder to increase friction. (Is MgCO3)
Magnesium is an important material in the aviation industry, and magnesium alloys are used to manufacture aircraft fuselages and engine parts;
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:
| DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
| AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
| Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
| Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
| Plate - Extra flat | AZ31B-O | -- | 4382 | |||
| Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
| AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
| Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
| Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
| AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
| As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
| Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
| As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
| ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
| As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
| Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
| As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
| Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 | |||||
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
