|Light Weight:||Easier Handling Saves Energy And Time.||Good Strength:||Excellent Strength And Stiffness Per Unit Weight.|
|DAMPING:||Absorbs Vibration For Longer Life, While Retaining Dimensional Stability.||Melting Range::||566 - 632°C|
|Modulus Of Elasticity::||45 X 109Pa||Electrical Resistivity::||92nΩm|
|NONMAGNETIC:||Good For Electrical And Computer Applications.||STABILITY:||No Stress Relief After Machining; No Warps And Is Dent Resistant.|
magnesium metal alloy,
magnesium aluminium tooling plate

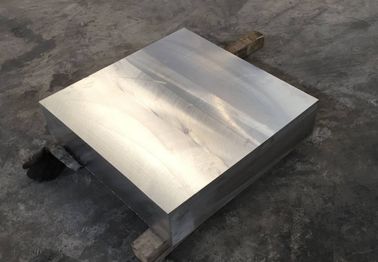

Magnesium Tooling Plate
Xian Yuechen Metal Products. Co., Ltd. (XYMCO) produces the magnesium tooling plate with the surface machining and polishing, the available dimension range:
Thickness: 0.3mm – 300mm
Width: Max. 2000mm
Tolerances: -0/+3mm for thickness, width and length
Magnesium Tooling Plate Flatness Tolerances
Max. deviation from flat as measured by a straight edge placed on plate surface.
|Specified Plate Gauge||Max. allowed deviation from flat|
|Over (mm)||Thru (mm)||In any 300mm||In any 1500mm||In any 2000mm|
|Specified Plate Gauge||Typical tooling plate deviation from flat|
|Over (mm)||Thru (mm)||In any 300mm||In any 1500mm||In any 2000mm|
Other sizes are available subject to enquiry, up to a maximum per plate weight of 2000kg.
Maximum gauge: 300mm; Maximum width 2000mm; Maximum length: 5000mm
STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE
|GAUGE TOLERANCES||WIDTH TOLERANCES||LENGTH TOLERANCES|
|Specified Gauge||Tolerance||Specified Width||Tolerance||Specified Width||Tolerance|
TOOLING PLATES STANDARD METRIC SIZES
|6.35 x 1250 x 2500mm||20 x 1500 x 4000mm||50 x 1500 x 4000mm|
|6.35 x 1250 x 4000mm||25 x 1250 x 2500mm||60 x 1250 x 2500mm|
|10 x 1250 x 2500mm||25 x 1250 x 4000mm||60 x 1250 x 4000mm|
|10 x 1250 x 4000mm||25 x 1500 x 4000mm||60 x 1500 x 4000mm|
|12.7 x 1250 x 2500mm||30 x 1250 x 2500mm||75 x 1250 x 2500mm|
|12.7 x 1250 x 4000mm||30 x 1250 x 4000mm||75 x 1250 x 4000mm|
|12.7 x 1500 x 4000mm||30 x 1500 x 4000mm||75 x 1500 x 4000mm|
|15 x 1250 x 2500mm||40 x 1250 x 2500mm||100 x 1250 x 2000mm|
|15 x 1250 x 4000mm||40 x 1250 x 4000mm||125 x 1250 x 2000mm|
|15 x 1500 x 4000mm||40 x 1500 x 4000mm||150 x 1250 x 1500mm|
|20 x 1250 x 2500mm||50 x 1250 x 2500mm|
|20 x 1250 x 4000mm||50 x 1250 x 4000mm|
Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.
MAGNESIUM TOOLING PLATE is specially produced to provide a flat plate surface with moderate strength and ductility. The production process results in plate with exceptional dimensional stability in machining and remains stable over time. There is sufficient ductility for limited room temperature forming combined with weldability to allow the manufacture of a multitude of complex parts. Wrought magnesium tooling plate (Alloy AZ31B) has the following benefits and characteristics:
|DAMPING||Absorbs vibration for longer life, while retaining dimensional stability.|
|TOOLING||4 to 5 times greater tool life.|
|FINISH||Up to 5 times more machinable than rolled aluminum.|
|COSTS||Machine dry, without oil or chemicals.|
|WEIGHT||Easier handling saves energy and time.|
|FLATNESS||Eliminates surface machining.|
|STABILITY||No stress relief after machining; no warps and is dent resistant.|
|WELDING||Strong weldments up to 95% of parent metal, with minimal porosity.|
|ALKALI-RESISTANT||Makes for easy cleaning.|
|CORROSION RESISTANT||A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion.|
|STRENGTH||Excellent strength and stiffness per unit weight.|
|NON-GALLING||Sound and rugged surface, offering a low coefficient of friction and minimum wear,|
|Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit.|
|NONMAGNETIC||Good for electrical and computer applications.|
|Greater amount of finished magnesium material obtained, pound for pound.|
|SALVAGE||Scrap retains a consistently high level of value.|
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
