| Flat Surface: | Flat Surface-the Surface Finish Is Typically 18-19 Micro-inches On Both Sides Of The Products. | Precision Machining: | Easily Machined With Minimal Distortion And Is Capable Of Maintaining Tolerances That Are Within The Thousandths Range |
|---|---|---|---|
| Easier Installation: | One-third The Weight Of Aluminium, One-fourth Of Steel Making For An Easier Installation Of The End Product. | Higher Salvage Value: | Higher Salvage Value Than Aluminium And Steel When The Tool Is No Longer Needed. |
| Rapid Heat Dissipation: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit. | Applications:: | Aerospace, Aviation, Textile Machinery, 3C, Mould/tooling, Vibration Testing System, Electronics, Automotive, Photoengraving And Power Generation Industries |
| High Light: | strongest magnesium alloy,light weight alloys |
||
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) offers you a wide variety of magnesium alloy materials and services to better meet your demanding needs. Our magnesium alloy materials scope is: magnesium alloy plate, magnesium tooling plate, AZ31B-TP tooling plate, magnesium alloy sheet, Magnesium CNC engraving plate, Magnesium CNC engraving sheet, Magnesium tooling sheet, Magnesium extrusions, Cast magnesium tooling plate, magnesium alloy rod, magnesium alloy billet, magnesium alloy bar, magnesium welding rod, magnesium welding wire, magnesium flat bar, magnesium alloy ingot, Mg-RE (magnesium rare earth) alloy ingot, etc. High quality materials and superior services at a competitive price has been our recipe for success since 1995. XYMCO can provide cut-to-size and cut-to-length magnesium materials for fulfilling your requirements. Make XYMCO your vendor of choice and create colorful masterpieces with our wide spectrum of magnesium materials service. Typing your RFQ and e-mail to sales.magalloys@qq.com, or WhatsApp at + 86 189 6693 5266 for our best quotation and services.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm

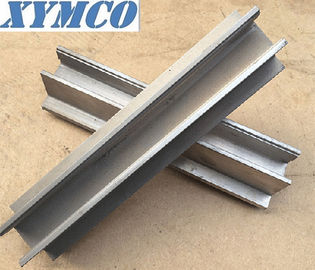

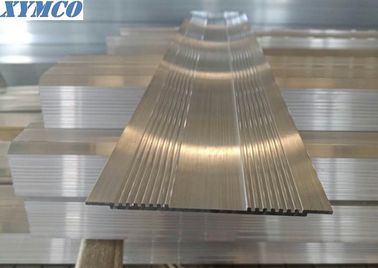

5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:
| DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
| AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
| Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
| Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
| Plate - Extra flat | AZ31B-O | -- | 4382 | |||
| Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
| AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
| Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
| Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
| AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
| As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
| Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
| As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
| ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
| As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
| Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
| As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
| Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 | |||||
