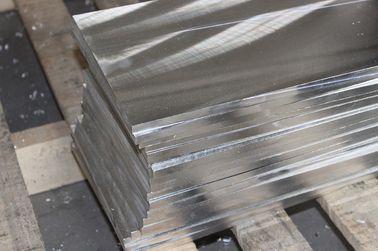

Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized

Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized
Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized

Large Image :  Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized

Product Details:
Place of Origin: CHINA
Brand Name: YUECHEN
Certification: SGS BV
Model Number: AZ31B-H24
Payment & Shipping Terms:
Minimum Order Quantity: 1KG
Price: 5-50USD/KG
Packaging Details: plywood case
Supply Ability: 50Tonne per month
Detailed Product Description
Light Weight: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. Stablity: No Stress Relief After Machining; No Warps And Is Dent Resistant.
COSTS: Machine Dry, Without Oil Or Chemicals. TOOLING: 4 To 5 Times Greater Tool Life.
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum. NONMAGNETIC: Good For Electrical And Computer Applications.
WEIGHT: Easier Handling Saves Energy And Time. FLATNESS: Eliminates Surface Machining.
WELDING: Strong Weldments Up To 95% Of Parent Metal, With Minimal Porosity. ALKALI-RESISTANT: Makes For Easy Cleaning.
CORROSION RESISTANT: A Wide Variety Of Chemical Treatments Exists For Corrosion Protection, Alteration Of Surface Appearance, And To Provide A Base For Painting. Basic Engineering Precautions Averts Galvanic Corrosion. STRENGTH: Excellent Strength And Stiffness Per Unit Weight.
NON-GALLING: Sound And Rugged Surface, Offering A Low Coefficient Of Friction And Minimum Wear, REPID HEAT: Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit.
UNIT VOLUME: Greater Amount Of Finished Magnesium Material Obtained, Pound For Pound. SALVAGE: Scrap Retains A Consistently High Level Of Value.
High Light:

magnesium alloy engine block

,

magnesium carbonate block

Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.

Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm

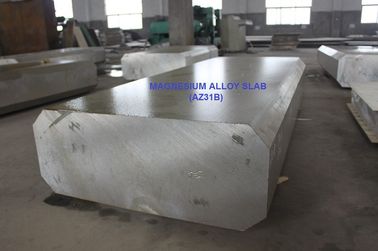

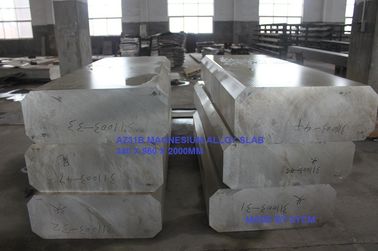

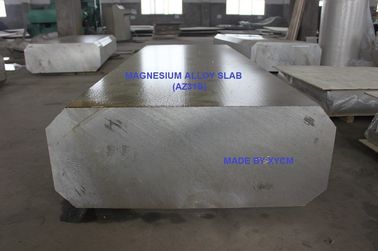

2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer
s design
7. Magnesium anode as per customer’s design

The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:

DESCRIPTION

ASTM Alloy

Designation & Temper

ASTMFEDERALAMS
AZ31BSheet - softAZ31B-OB90QQ-M-44B4375
Sheet - half hardAZ31B-H24B90QQ-M-44B4377
Plate - softAZ31B-OB90QQ-M-44B4375
Plate - half hardAZ31B-H24B90QQ-M-44B4377
Plate- three quarters hardAZ31B-H26B90QQ-M-44B4376
Plate - Extra flatAZ31B-O --4382
Extruded bars & sectionsAZ31B-FB107QQ-M-31B-
AZ61AExtruded bas & sections & forging stockAZ61A-FB107QQ-M-31B4350
Extruded tubeAZ61A-FB107WW-T-825B-
ForgingsAZ61A-FB91QQ-M-40B-
AZ80A

Extruded bars &

sections

precipitation treatedAZ80A-T5B107QQ-M-31B-
As-extrudedAZ80A-FB91QQ-M-31B-
Forgingsprecipitation treatedAZ80A-T5B91QQ-M-40B4360
As-extrudedAZ80A-FB91QQ-M-40B
ZK60A

Extruded bars &

sections

precipitation treatedZK60A-T5B107QQ-M-31B4352
 As-extrudedZK60A-FB107QQ-M-31B-
Forgingsprecipitation treatedZK60A-T5B91QQ-M-40B4362
 As-extrudedZK60A-FB91QQ-M-40B-
Magnesium Alloy CastingsAM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41


Semi-continuous Cast AZ31B-O AZ31B-H24 block Cut-to-size magnesium alloy slab ASTM standard homogenized 0

DAMPINGAbsorbs vibration for longer life, while retaining dimensional stability.
TOOLING4 to 5 times greater tool life.
FINISHUp to 5 times more machinable than rolled aluminum.
COSTSMachine dry, without oil or chemicals.
WEIGHTEasier handling saves energy and time.
FLATNESSEliminates surface machining.
STABILITYNo stress relief after machining; no warps and is dent resistant.
WELDINGStrong weldments up to 95% of parent metal, with minimal porosity.
ALKALI-RESISTANTMakes for easy cleaning.
CORROSION RESISTANTA wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion.
STRENGTHExcellent strength and stiffness per unit weight.
NON-GALLINGSound and rugged surface, offering a low coefficient of friction and minimum wear,

REPID HEAT
DISSIPATION

Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit.
NONMAGNETICGood for electrical and computer applications.

UNIT VOLUME
YIELD

Greater amount of finished magnesium material obtained, pound for pound.
SALVAGEScrap retains a consistently high level of value.
