| Light Weight: | Magnesium Is A Lightest Structural Metal, About The Two Third Of The Density Of Aluminum, One Fourth Of Steel, Copper And Brass. | Good Strength: | Excellent Strength And Stiffness Per Unit Weight. |
|---|---|---|---|
| Stability: | No Stress Relief After Machining; No Warps And Is Dent Resistant. | Non-magnetic: | Good For Electrical And Computer Applications. |
| Rapid Heat Dissipation: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit. | ||
| High Light: | az31 magnesium alloy,magnesium aluminium tooling plate |
||

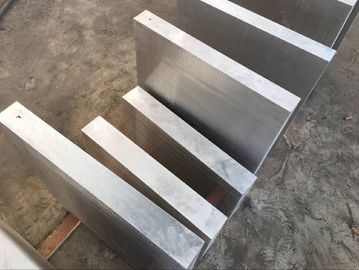

Xi'an Yuechen Metal Products. Co., Ltd. XYMCO’s key products - AZ31 magnesium tooling plate, AZ31-TP magnesium tooling plate, AZ31B-TP magnesium tooling plate, AZ31B-O magnesium tooling plate, AZ31B magnesium tooling plate, AZ31B-H24 magnesium tooling plate, AZ80A magnesium tooling plate, AZ91D magnesium tooling plate, AM50A magnesium tooling plate, AM60A magnesium tooling plate, purity magnesium tooling plate, which are produced from fine-grain magnesium alloys which is free from internal stresses. This material is internally stable, which assures minimum movement during machining. Tool & Jig plate is a machined product with flat surfaces and a surface finish equal to 32 micro-inches or better on both sides. It is readily machined with very little distortion.
Cast magnesium tooling plate is used where strength is not a requirement, but minimal machining distortion along with flatness is required. This material is non-heat treatable.
XYMCO - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
AZ31B bare or precoating magnesium photoengraving plate for engraving
Magnesium plate has good carving processing performance.
Because of its outstanding characteristics of magnesium plate engraving of low density, high specific stiffness, good damping property, environment friendly and no pollution, Recyclable good performance, known as the twenty-first Century green metal structure material. The magnesium plate engraving and mechanical processing of parts, in national defense, aerospace, electronic communication, rail transportation, medical equipment, printing plate, magnesium board carving mold and other fields, and has wide application prospect.
Our Advantage
Advantage
Full range of product types, Ensure production capacity:
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage:
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
| DAMPING | Absorbs vibration for longer life, while retaining dimensional stability. |
| TOOLING | 4 to 5 times greater tool life. |
| FINISH | Up to 5 times more machinable than rolled aluminum. |
| COSTS | Machine dry, without oil or chemicals. |
| WEIGHT | Easier handling saves energy and time. |
| FLATNESS | Eliminates surface machining. |
| STABILITY | No stress relief after machining; no warps and is dent resistant. |
| WELDING | Strong weldments up to 95% of parent metal, with minimal porosity. |
| ALKALI-RESISTANT | Makes for easy cleaning. |
| CORROSION RESISTANT | A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion. |
| STRENGTH | Excellent strength and stiffness per unit weight. |
| NON-GALLING | Sound and rugged surface, offering a low coefficient of friction and minimum wear, |
| REPID HEAT DISSIPATION |
Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit. |
| NONMAGNETIC | Good for electrical and computer applications. |
| UNIT VOLUME YIELD |
Greater amount of finished magnesium material obtained, pound for pound. |
| SALVAGE | Scrap retains a consistently high level of value. |
