Home ProductsMagnesium Tooling Plate

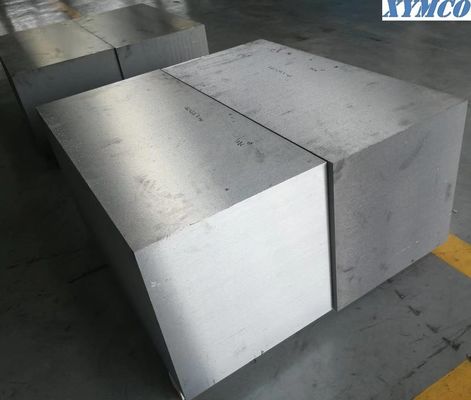

Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size

China Xi'an Yuechen Metal Products Co., Ltd certification
The sales is very professional and patient to answer my questions, the whole purchase process is very pleasant, looking forward to another cooperation

—— Mr. Mike Zaudke

Fast delivery, I have used magnesium rare earth alloy for some time, the product quality is much batter than I used to buy, it is worth buying.

—— Mr. Anton Kurniawan

Good morning Vera, Its me...again! I have received the plates and they look absolutely wonderful, and the workmanship is just incredible. Thanks you so much for your great support. We are planing to place another new PO.

—— Yamamoto

Good day Frank, I would like to extend a word of thanks to you, for your professional and efficient service delivered to me for the above mentioned billet and extrusions. I am really impressed, and you can be sure that I will be making use of your mag products again in near future. Dave

—— Dave

I'm Online Chat Now

Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size

Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size
Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size

Large Image :  Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size

Product Details:
Place of Origin: CHINA
Brand Name: YUECHEN
Certification: ISO9001, SGS, BV
Model Number: AZ31, AZ61, AZ80, AZ91, AM60, ZK60, ME20
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: Negotiation
Packaging Details: Plywood case
Delivery Time: 5days
Payment Terms: T/T, D/P
Supply Ability: 200tonne per month
Detailed Product Description
Light Weight: Magnesium Is A Lightest Structural Metal, About The Two Third Of The Density Of Aluminum, One Fourth Of Steel, Copper And Brass. Good Strength: Excellent Strength And Stiffness Per Unit Weight.
STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant. Good EMI And RF Shielding: Magnesium Is With Good EMI And RF Shielding Characteristics
High Light:

magnesium alloy tube

,

magnesium steel alloy

Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.

Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design

7. Magnesium anode as per customer’s design
Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 0
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:

DESCRIPTION

ASTM Alloy

Designation & Temper

ASTMFEDERALAMS
AZ31BSheet - softAZ31B-OB90QQ-M-44B4375
Sheet - half hardAZ31B-H24B90QQ-M-44B4377
Plate - softAZ31B-OB90QQ-M-44B4375
Plate - half hardAZ31B-H24B90QQ-M-44B4377
Plate- three quarters hardAZ31B-H26B90QQ-M-44B4376
Plate - Extra flatAZ31B-O --4382
Extruded bars & sectionsAZ31B-FB107QQ-M-31B-
AZ61AExtruded bas & sections & forging stockAZ61A-FB107QQ-M-31B4350
Extruded tubeAZ61A-FB107WW-T-825B-
ForgingsAZ61A-FB91QQ-M-40B-
AZ80A

Extruded bars &

sections

precipitation treatedAZ80A-T5B107QQ-M-31B-
As-extrudedAZ80A-FB91QQ-M-31B-
Forgingsprecipitation treatedAZ80A-T5B91QQ-M-40B4360
As-extrudedAZ80A-FB91QQ-M-40B
ZK60A

Extruded bars &

sections

precipitation treatedZK60A-T5B107QQ-M-31B4352
 As-extrudedZK60A-FB107QQ-M-31B-
Forgingsprecipitation treatedZK60A-T5B91QQ-M-40B4362
 As-extrudedZK60A-FB91QQ-M-40B-
Magnesium Alloy CastingsAM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41

Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 1
Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 2Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 3Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 4Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 5Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 6Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 7Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 8
Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 9Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 10Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 11Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 12Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 13Hot rolled AZ31 Magnesium tooling plate AZ31 TP magnesium tooling plate polished surface with fine flatness cut-to-size 14

Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality

FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
